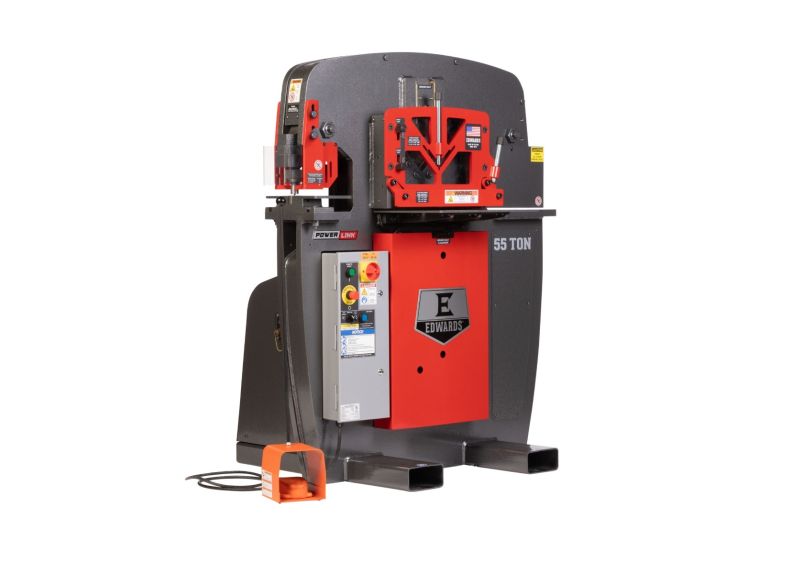

55 Ton Ironworker 575V, 3Ph with PowerLink
Leasing starts at $532 with Click LeaseYou are able to calculate lease price on Click Lease's website.
Normally it takes no longer than 3 minutes.
Built for demanding workloads, the 55 Ton Ironworker with PowerLink offers power, precision, and adaptability. The four workstations are customizable with 11 interchangeable attachments, allowing users to optimize performance. The PowerLink™ System extends the unit’s functionality, making it a reliable power source for hydraulic tools. With enhanced safety features, including bright LED lighting, an open-style guard, and an illuminated jog button, this ironworker ensures accuracy and protection.
3PH 575V power supply for industrial-grade reliability
Adjustable electric stroke control for consistent precision
Interchangeable attachments for customized configurations
Bright LED lighting and open-style guard for enhanced visibility
Integrated E-Stop and Lock-out/Tag-out for secure machine control
Optimized workstation heights for seamless efficiency
| Stock Number | ED9-IW55-3P575-A |
|---|---|
| Amps | 6 |
| Angle Shear Max Capacity 1/4" | 4 x 4 |
| Angle Shear Work Height (In.) | 39-7/8 |
| Flat Bar Shear Max Capacity 1/2" | 12 |
| Flat Bar Shear Max Capacity 3/4" | 4 |
| Flat Bar Shear Max Capacity (In.) | 3/8 x 14, 1/2 x 12, 3/4 x 4 |
| Flat Bar Shear Max Round (In) | 7/8 |
| Flat Bar Shear Max Square (In) | 7/8 |
| Flat Bar Shear Rating (Tons) | 55 |
| Flat Bar Shear Work Height (In.) | 34-1/2 |
| Gross Weight (Lbs) | 2480 |
| Hydraulic Pump (GPM) | 3-1/2 |
| Hydraulics (GPM) | 3-1/2 |
| Hydraulics (PSI) | 2500 |
| Model Number | IW55-3P575-AC500 |
| Motor Amps | 6 |
| Motor (HP) | 5 HP 3 ~ 575V |
| Motor Speed (RPM) | 1725 |
| Open Station Open Height (In) | 8-1/8 |
| Open Station Shut Height (In) | 6-7/8 |
| Open Station Stroke (In) | 1-1/4 |
| Open Station Throat Depth (In) | 11-3/16 |
| Open Station Work Height (In) | 34-1/2 |
| Open Workstation Throat Depth (In.) | 11-3/16 |
| Open Workstation Work Height (In.) | 34-1/2 |
| Optional Coper Notcher Work Height (In.) | 39-1/2 |
| Overall Dimensions (L x W x H) (In.) | 36-1/8 x 44-3/8 x 55-1/4 |
| Product Dimensions (In.) | 44-3/8 x 36-1/8 x 55-1/4 |
| Prop 65 | Cancer and Reproductive Harm |
| Punch Max Capacity (In.) | 1-16 diam. In 5/8 mild steel |
| Punch Open Height (In) | 8-1/8 |
| Punch Rating (Tons) | 55 |
| Punch Shut Height (In) | 6-7/8 |
| Punch Stroke (In.) | 1-1/4 |
| Punch Throat Depth (In.) | 7-1/2 |
| Punch Work Height (In.) | 36-9/16 |
| Rating (Tons) | 55 |
| Reservoir (Gal.) | 7 |
| Shipping Dimensions (L x W x H) (In.) | 45 x 51 x 62 |
| Valve Pressure (PSI) | 2750 |
| Warranty | 1 Year |
| Weight (Lbs.) | 2480 |
| Gross Weight | 2480.0 |
| Net weight | 2430.0 |
| Product Lease Price | 532 |
