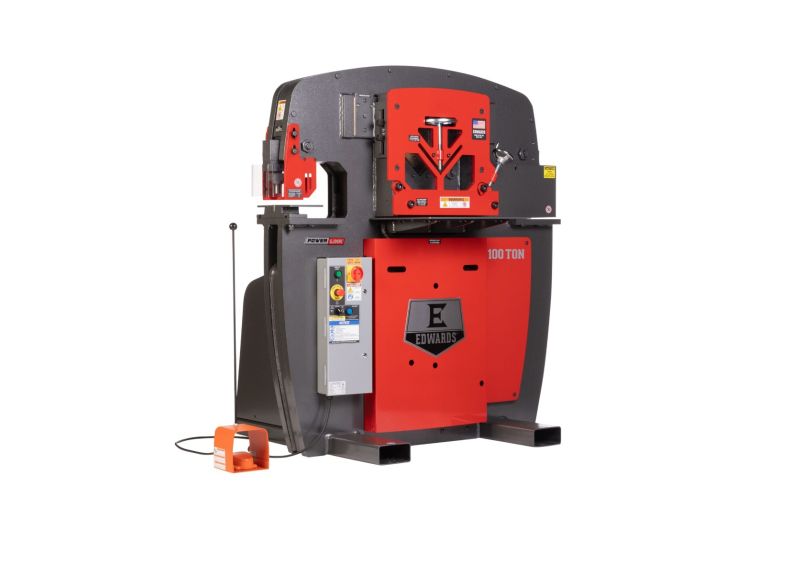

100 Ton Ironworker 575V, 3Ph, with PowerLink
100 Ton Ironworker 575V, 3Ph, with PowerLink
Our 100 Ton Ironworker provides optimal power and adaptability to handle any project with its four workstations, 13 interchangeable attachments in the open workstation, and 17 accessories to adapt the Ironworker to your needs. Ideal for larger fabrication shops or those jobs requiring heavier materials, this compact machine that allows for fast and easy transitions between fabrication operations: punch, shear, notch, bend, or cope all in one machine. The Angle Shear blades have 2 corner radii and are made of precision tool steel with 2 cutting edges, while the Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges. The PowerLink™ System increases your capabilities by turning your Ironworker into a power source for our line of Hydraulic Tools.
| Stock Number | ED9-IW100-3P575-A |
|---|---|
| Amps | 8 |
| Angle Shear Max Capacity 1/2" | 6 x 6 |
| Angle Shear Max Capacity 3/8" | 5 x 5 |
| Angle Shear Work Height (In.) | 43-15/16 |
| Coper Notcher Max Capacity (In.) | 2-1/2 x 6 x 1/2 |
| Coper Notcher Work Height (In.) | 42 |
| Flat Bar Shear Max Capacity 1" | 10 |
| Flat Bar Shear Max Capacity 3/4" | 14 |
| Flat Bar Shear Max Capacity (In.) | 3/4 x 14, 1 x 10 |
| Flat Bar Shear Max Round Capacity (In.) | 1-1/4 |
| Flat Bar Shear Max Round (In) | 1-1/4 |
| Flat Bar Shear Max Square (In) | 1-1/4 |
| Flat Bar Shear Rating (Tons) | 100 |
| Flat Bar Shear Work Height (In.) | 37 |
| Gross Weight (Lbs) | 4650 |
| Hydraulic Pump (GPM) | 10-1/2 |
| Hydraulic Reservoir (Gal.) | 17 |
| Hydraulics (GPM) | 10-1/2 |
| Hydraulics (PSI) | 3500 |
| Model Number | IW100-3P575-AC600 |
| Motor Amps | 8 |
| Motor (HP) | 7.5 HP 3 ~ 575V |
| Open Workstation Throat Depth (In.) | 14-3/4 |
| Open Workstation Work Height (In.) | 37 |
| Overall Dimensions (L x W x H) (In.) | 45 x 56-1/8 x 61-11/16 |
| Product Dimensions (In.) | 56-1/8 x 45 x 61-11/16 |
| Prop 65 | Cancer and Reproductive Harm |
| Punch Max Capacity (In.) | 1-1/16 diam. in 1 mild steel |
| Punch Open Height (In) | 8-3/4 |
| Punch Rating (Tons) | 100 |
| Punch Shut Height (In) | 6-15/16 |
| Punch Stroke (In.) | 1-13/16 |
| Punch Work Height (In.) | 39-1/16 |
| Rating (Tons) | 100 |
| Reservoir (Gal.) | 17 |
| Shipping Dimensions (L x W x H) (In.) | 46 x 69 x 67 |
| Valve Pressure (PSI) | 3500 |
| Warranty | 1 Year |
| Weight (Lbs.) | 4650 |
| Gross Weight | 4650.0 |
