55 Ton Ironworker 3 Phase, 208 Volt, PowerLink, Coper Notcher

Stock Number
ED9-55203012
$15,309.00

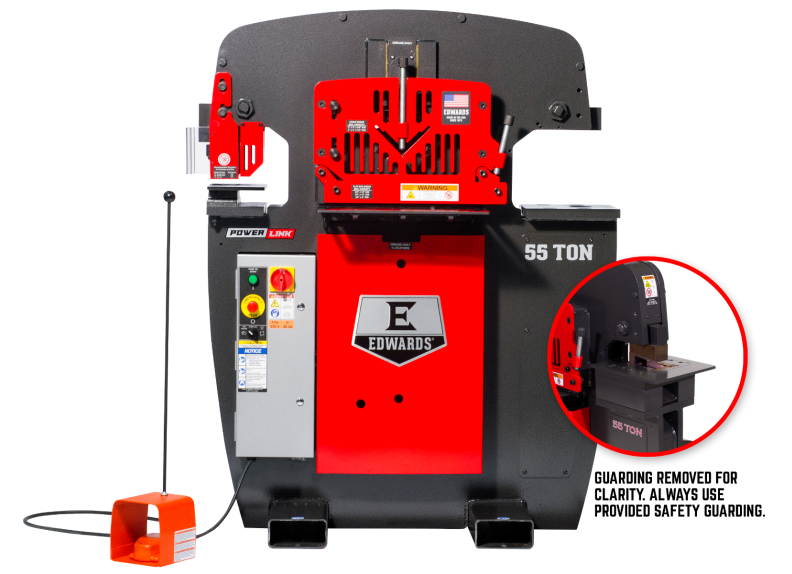

Edwards 55 Ton Ironworker with Coper Notcher with lighted workstations, 3 Ph, 208 Volt

This 55 Ton Ironworker includes a factory-installed coper notcher, provides power for large projects, and offers the ability to customize one of its four workstations with 11 interchangeable attachments, and 17 additional accessories to help improve operator accuracy and productivity. The Angle Shear blades have 2 corner radii and are made of precision tool steel with 2 cutting edges, while the Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges. Great for general use from medium size shops to full factory maintenance departments, the compact machine that allows for fast and easy transitions between fabrication operations: punch, shear, notch, bend, or cope all in one machine. The PowerLink™ System increases your capabilities by turning your Ironworker into a power source for our line of Hydraulic Tools.

Adjustable electric stoke control
ANSI B11.5-1988(02) Compliant Guarding
Bright LED lights increases visibility
Durable, heavy-duty Made in USA steel construction
Electric foot pedal with integrated jog control
ETL Certified Controls
Integrated Lock-out/Tag-out system with multiple location E-Stop (foot pedal & control panel) for added safety
Optimized workstation heights for improved efficiency
Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes
Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life
More Information
Stock NumberED9-55203012
Amps14
Angle Shear Max Capacity 1/2"4 x 4
Angle Shear Max Capacity 3/8"3 x 3
Flat Bar Shear Max Capacity 1"12
Flat Bar Shear Max Capacity 3/4"14
Flat Bar Shear Max Round Capacity (In.)7/8
Flat Bar Shear Max Round (In)7/8
Flat Bar Shear Max Square Capacity (In.)7/8
Flat Bar Shear Max Square (In)7/8
Flat Bar Shear Work Height (In.)34-1/2
Hydraulics2500.0000
Hydraulics (GPM)3-1/2
Hydraulics (PSI)2500
Model Number55203012
Motor Amps14
Motor (HP)5HP, 230V, 3PH
Motor Speed (RPM)1725
Open Station Open Height (In)8-1/8
Open Station Shut Height (In)6-7/8
Open Station Stroke (In)1-1/4
Open Station Throat Depth (In)11-3/16
Open Station Work Height (In)34-1/2
Open Workstation Throat Depth (In.)11-3/16
Open Workstation Work Height (In.)34-1/2
Opt. Coper Notcher Max Capacity (In.)2-1/2 x 4 x 5/16
Opt. Coper Notcher Work Height (In.)39-1/2
Product Dimensions (In.)44-3/8 x 36-1/8 x 55-1/4
Prop 65Cancer and Reproductive Harm
Punch Max Capacity (In.)1-16 diam. In 5/8 mild steel
Punch Open Height (In)8-1/8
Punch Rating (Tons)55
Punch Shut Height (In)6-7/8
Punch Stroke (In.)1-1/4
Punch Throat Depth (In.)7-1/2
Punch Work Height (In.)36-9/16
Rating (Tons)55
Reservoir (Gal.)7
Shipping Dimensions (L x W x H) (In.)45 x 51 x 62
