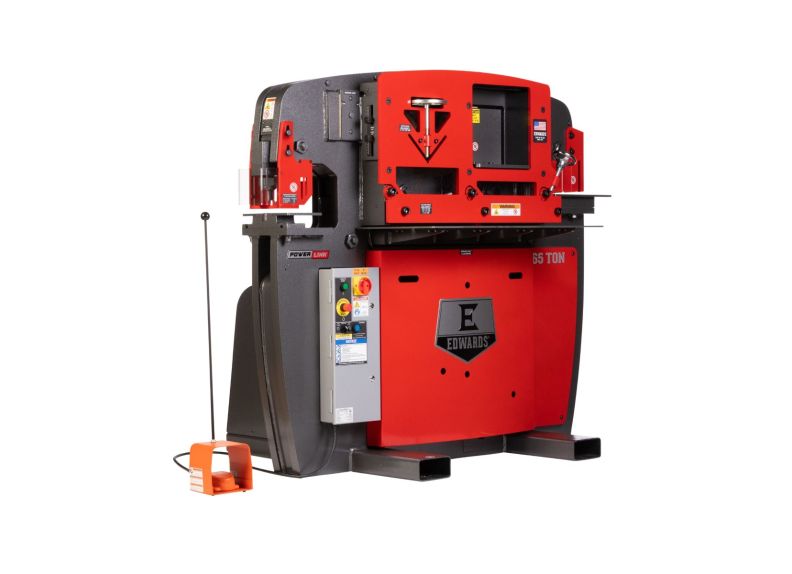

65 Ton Ironworker 575V, 3Ph, with PowerLink
Call 507-373-8206 for availability
Stock Number:
ED9-IW65-3P575-A
$28,187.10
The 65 Ton is the ultimate mid-range Ironworker. Flexible enough to handle a wide variety of projects, this 5 workstation machine is extremely versatile. It allows for fast and easy transitions between fabrication operations: punch, shear, notch, bend or cope all in one machine. Other features include an electric foot pedal with integrated jog control, bright LED lights to increase visibility and heavy-duty Made in USA steel construction. The PowerLink™ System increases your capabilities by turning your Ironworker into a power source for our line of Hydraulic Tools. Accepting 14 interchangeable Attachments and 17 Accessories allows an operator to improve productivity and accuracy.
3PH 575V power supply
Electric foot pedal with jog control for effortless operation
Integrated Lock-out/Tag-out system with multiple location E-Stop (foot pedal & control panel) for added safety
Interchangeable attachments and accessories for added versatility
Optimized workstation heights to reduce operator fatigue
ETL/UL Approved Controls ensure safety and compliance
ANSI B11.5-1988(02) compliant guarding for operator protection
Heavy-duty steel construction for long-term durability
| Stock Number | ED9-IW65-3P575-A |
|---|---|
| Amps | 8 |
| Angle Shear Max Capacity 3/8" | 5 x 5 |
| Coper Notcher Max Capacity (In.) | 2-1/2 x 5 x 3/8 |
| Coper Notcher Work Height (In.) | 39-1/2 |
| Flat Bar Shear Max Capacity 1/2" | 14 |
| Flat Bar Shear Max Capacity 3/8" | 24 |
| Flat Bar Shear Max Capacity (In.) | 3/8 x 24, 1/2 x 14, 1x4 |
| Flat Bar Shear Max Round Capacity (In.) | 1 |
| Flat Bar Shear Max Round (In) | 1 |
| Flat Bar Shear Max Square (In) | 1 |
| Flat Bar Shear Rating (Tons) | 65 |
| Flat Bar Shear Work Height (In.) | 34-1/2 |
| Gross Weight (Lbs) | 4750 |
| Hydraulic Pump (GPM) | 10-1/2 |
| Hydraulic Reservoir (Gal.) | 17 |
| Hydraulics (GPM) | 10-1/2 |
| Hydraulics (PSI) | 3500 |
| Model Number | IW65-3P575-AC600 |
| Motor Amps | 8 |
| Motor (HP) | 7.5 HP 3 ~ 575V |
| Motor Speed (RPM) | 1770 |
| Overall Dimensions (L x W x H) (In.) | 45 x 62-1/8 x 57 |
| Prop 65 | Cancer and Reproductive Harm |
| Punch Max Capacity (In.) | 1-1/16 diam. in 3/4 mild steel |
| Punch Open Height (In) | 8-3/4 |
| Punch Rating (Tons) | 65 |
| Punch Shut Height (In) | 6-15/16 |
| Punch Stroke (In.) | 1-13/16 |
| Punch Work Height (In.) | 36-9/16 |
| Rating (Tons) | 65 |
| Reservoir (Gal.) | 17 |
| Shipping Dimensions (L x W x H) (In.) | 46 x 69 x 63 |
| Valve Pressure (PSI) | 3500 |
| Warranty | 1 Year |
| Weight (Lbs.) | 4750 |
| Gross Weight | 4750.0 |
| Net weight | 4655.0 |
